Control System Location Index [MZI-3.7]

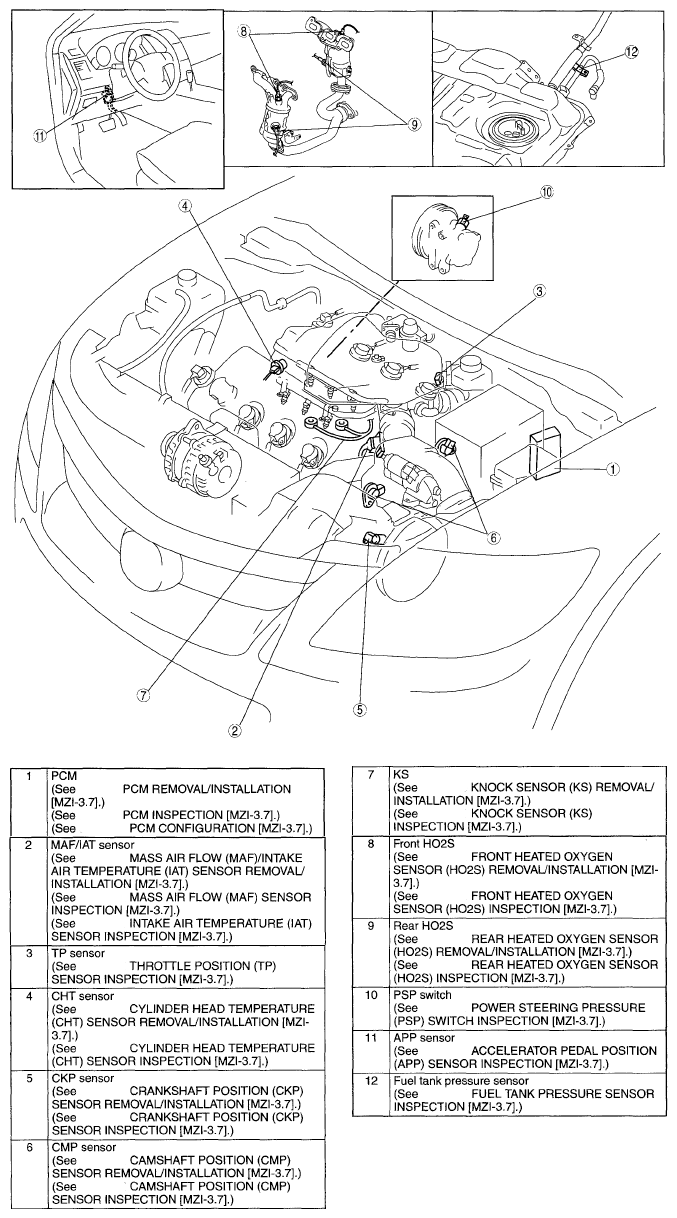

Fig 1: Identifying Control System Components Location

G05507949

Courtesy of MAZDA MOTORS CORP.
