CX-9 Touring, 3.7 V, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (MZI-3.7)
>>
Control System Diagram [MZI-3.7]
Control System Diagram [MZI-3.7]

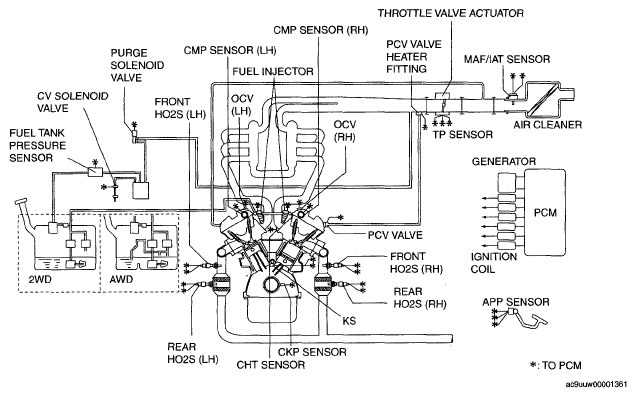

Fig 1: Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
