Camber/Total Toe-In Adjustment

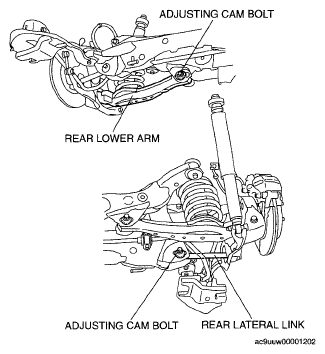

- Loosen the securing nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the camber and total toe-in.
Camber
CAMBER REFERENCEAdjusting cam bolt rotation direction Rear lower arm side Rear lateral link side Left wheel Right wheel Left wheel Right wheel Clockwise direction Negative Positive Positive Negative Counterclockwise direction Positive Negative Negative Positive Total toe-in
TOTAL TOE-IN REFERENCEAdjusting cam bolt rotation direction Rear lower arm side Rear lateral link side Left wheel Right wheel Left wheel Right wheel Clockwise direction Toe-in Toe-out Toe-in Toe-out Counterclockwise direction Toe-out Toe-in Toe-out Toe-in - Fix the adjusting cam bolt, and tighten the nut.
Tightening torque
- 120-163 N.m {12.3-16.6 kgf.m, 89-120 ft.lbf}
