Passenger Side

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. See INNER GARNISH REMOVAL/INSTALLATION .
  3. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  4. Remove the screw, and remove the power window subswitch from inside the front door trim.
  5. Install in the reverse order of removal.

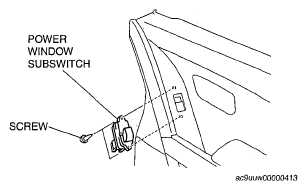

    Fig 1: Identifying Power Window Subswitch & Screw (Passenger Side)
    G04971121Courtesy of MAZDA MOTORS CORP.
