Main Silencer Installation Note

  1. Spray Carbon remover (TB6601 or equivalent) on the flared section of the exhaust pipe.
  2. Remove the carbon adhering to the flared section shown in the figure using a nylon brush or sandpaper (No. 400 or equivalent).

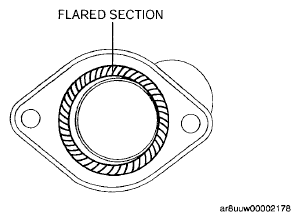

Fig 1: Identifying Flared Section Of Exhaust Pipe
G05981026Courtesy of MAZDA MOTORS CORP.
