Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Auto Light Control Module | Behind left side of dash. See Figure. |
| AWD Control Module | Behind left end of dash. See Figure. |
| BCM | Behind left kick panel. See Figure. |
| Car-Navigation Unit | Under front passenger's seat. See Figure. |

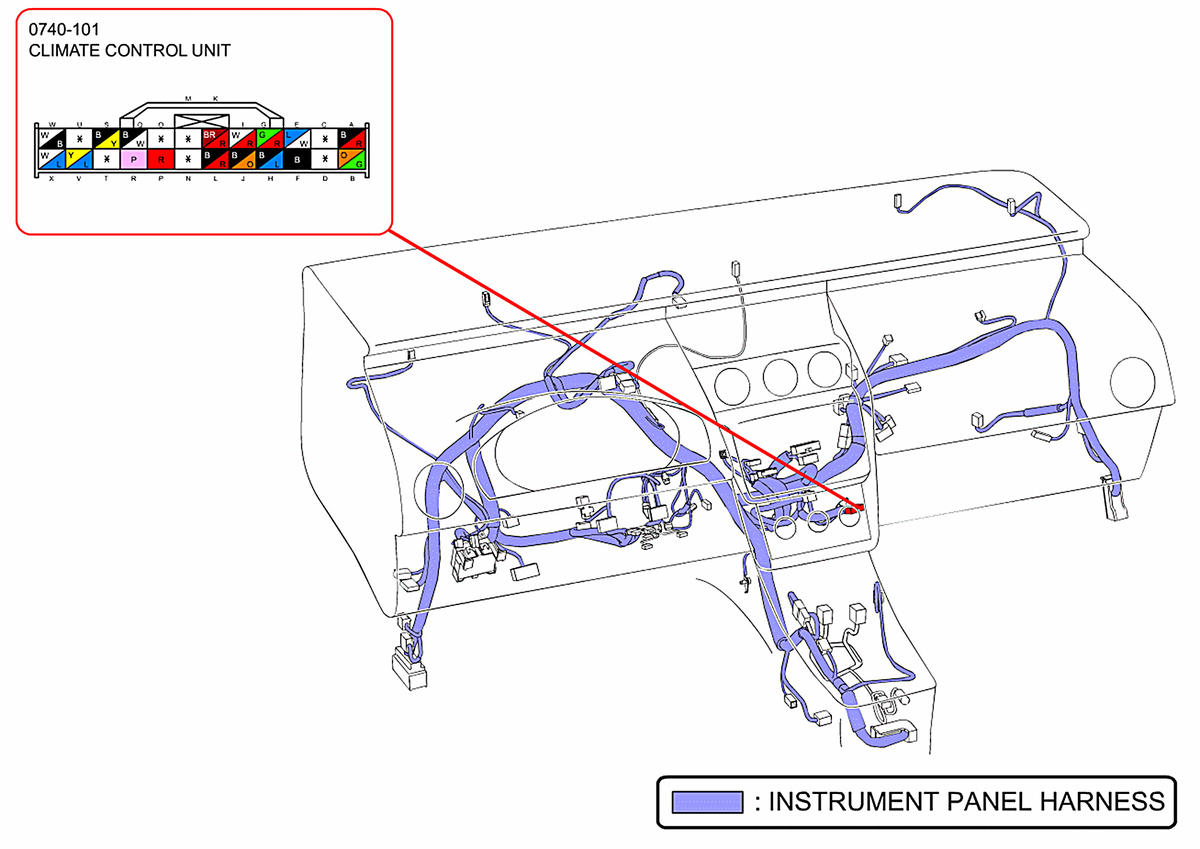

| Climate Control Unit | Lower center of dash. See Figure. |
| DSC HU/CM | Left rear corner of engine compartment. See Figure. |
| Fan Control Module No. 1 | Behind left cooling fan assembly. |
| Fan Control Module No. 2 | Behind right cooling fan assembly. |

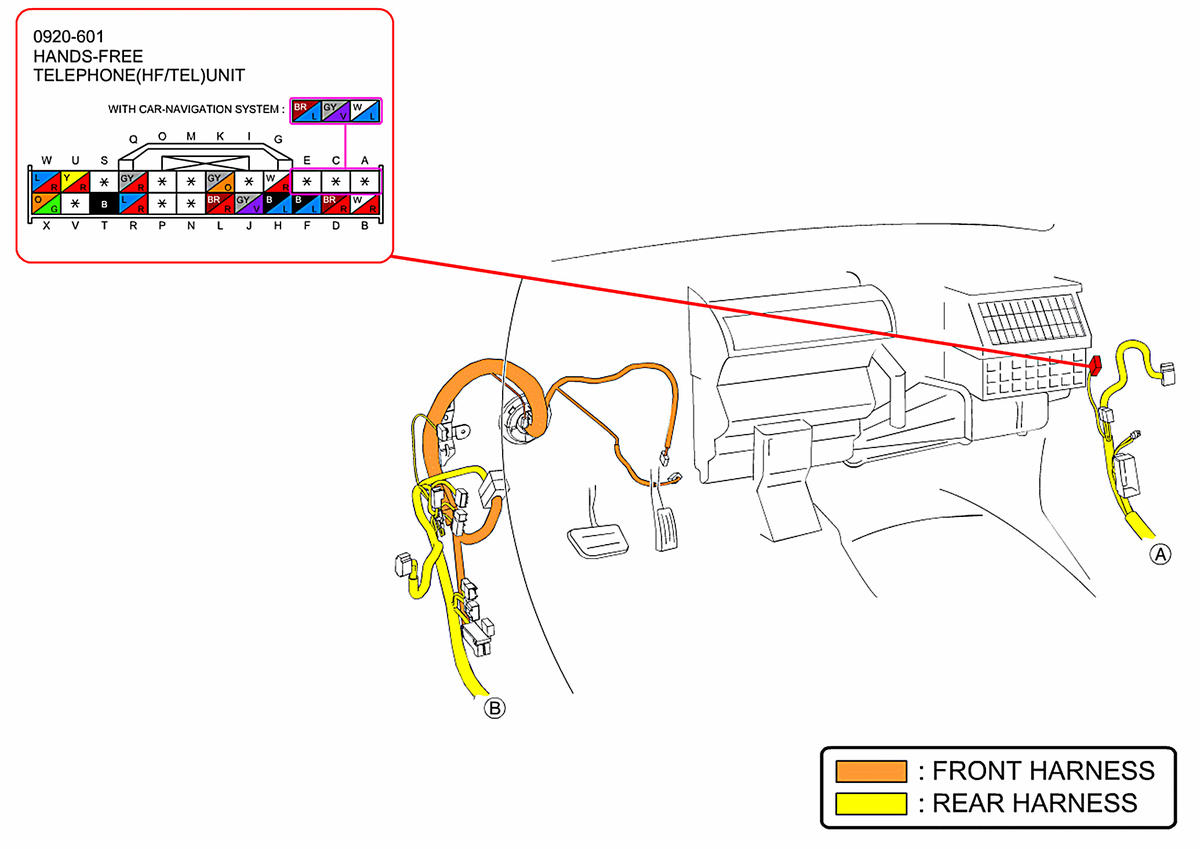

| Hands-Free Telephone (HF/TEL) Unit | Right end of dash. See Figure. |
| Keyless Control Module | Behind right kick panel. See Figure. |
| Keyless Receiver | Behind right side of dash. |
| PCM | Left rear corner of engine compartment. See Figure. |
| SAS Control Module | Under front of center console. See Figure. |
| Seat Weight Sensor Control Module | Under front passenger's seat. See Figure. |

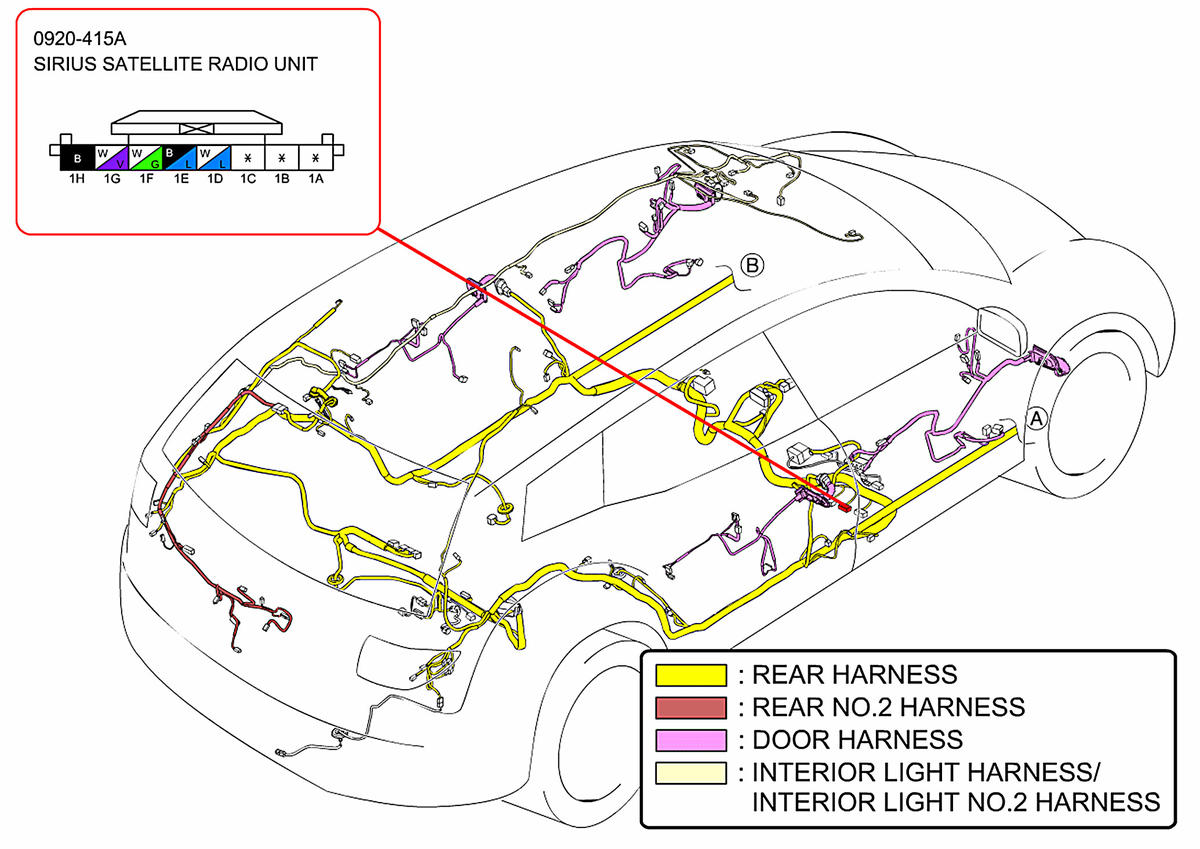

| Sirius Radio Control Unit (W/Navigation) | Right rear of luggage compartment. See Figure. |
| Sirius Radio Control Unit (W/O Navigation) | Under front passenger's seat. See Figure. |

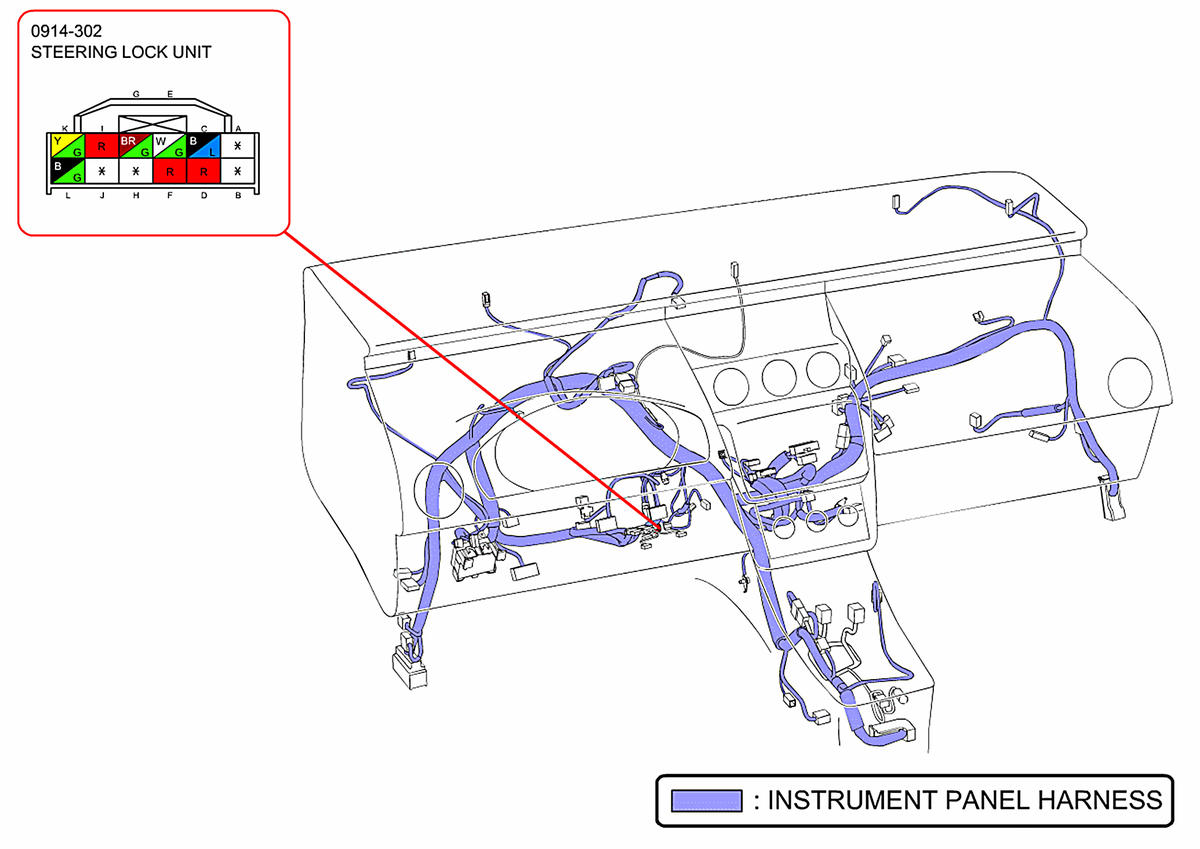

| Steering Lock Unit | Lower left side of dash. See Figure. |
| TCM | Left side of engine compartment. See Figure. |
