Rear Door Glass Removal/Installation

  1. Fully lower the rear door glass.
  2. Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION ).
  3. Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION ).
  4. Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION ).
  5. Adjust the door glass position as shown in the figure.
    6. Fig 1: Adjusting Rear Door Glass
    G04860998Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the negative battery cable.
  7. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION ).
  8. Remove the bolts.

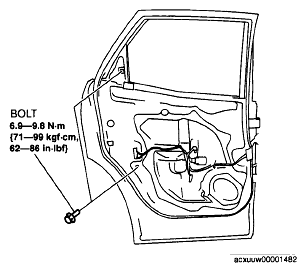

    Fig 2: Rear Door Glass Bolt With Torque Specifications
    G04860999Courtesy of MAZDA MOTORS CORP.
  9. Remove the rear door glass guide and glass run channel as a single unit.

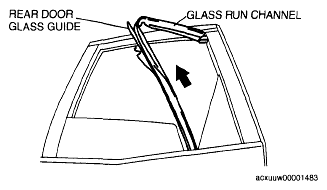

    Fig 3: Identifying Rear Door Glass Guide & Run Channel
    G04861000Courtesy of MAZDA MOTORS CORP.
  10. Remove the hole cover.
  11. Remove the bolt
  12. Lift the rear door glass up and remove it in the direction of the arrow.
  13. Install in the reverse order of removal.

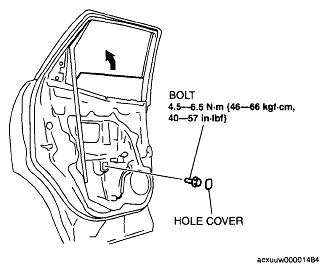

    Fig 4: Rear Door Glass Bolt With Torque Specifications
    G04861001Courtesy of MAZDA MOTORS CORP.
