Camber and Caster Adjustment

Remove the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION ).
Jack up the front of the vehicle and support it on safety stands.
Remove the mounting rubber nuts.

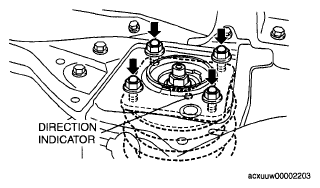

Fig 1: Locating Mounting Rubber Nuts
Courtesy of MAZDA MOTORS CORP.

Push the shock absorber and coil spring component downward, and turn the direction indicator to the desired position.

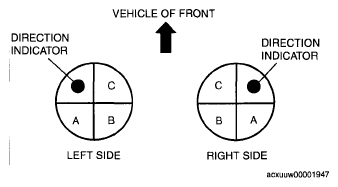

Fig 2: Identifying Direction Indicator Desired Position

G04859892

Courtesy of MAZDA MOTORS CORP.

ADJUSTMENT VALUE FROM ORIGINAL POSITION

Direction indicator position	Camber angle	Caster angle
A	0°	+0°22'
B	+0°22'	+0°22'
C	+0°22'	0°

Install the shock absorber and coil spring, then tighten the mounting rubber nuts to the specified torque.
Tightening torque

46.1-62.7 N.m {4.71-6.39 kgf-m, 34.1-46.2 ft.lbf}
Install the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION ).
Install the windshield wiper arm. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
