DTC P1888: Notes

WARNING: This page is about a different variant/trim than selected.
DTC P1888 DETECTION CONDITION AND POSSIBLE CAUSE

DTC P1888 Differential oil temperature sensor circuit
DETECTION CONDITION
  • Differential oil temperature sensor voltage monitor circuit detects abnormal input voltage.
POSSIBLE CAUSE
  • Open circuit, or short to battery or GND between AWD CM terminal A and differential oil temperature sensor terminal A
  • Open circuit or short to battery between AWD CM terminal C and differential oil temperature sensor terminal B
  • Differential oil temperature sensor malfunction
  • AWD CM malfunction
  • Poor connection of connectors (female terminals)

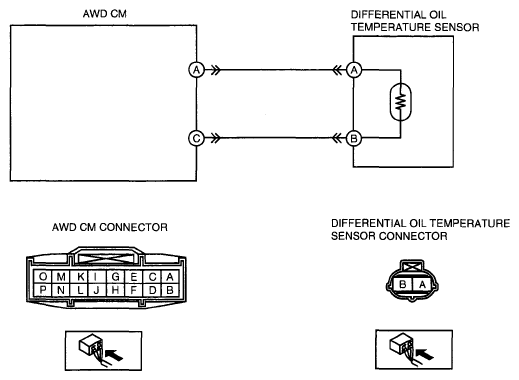

G04859981Courtesy of MAZDA MOTORS CORP.
