NO. 1 Engine Mount Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the NO. 1 engine mount bracket on the automatic transaxle case and temporarily tighten bolt A and B.

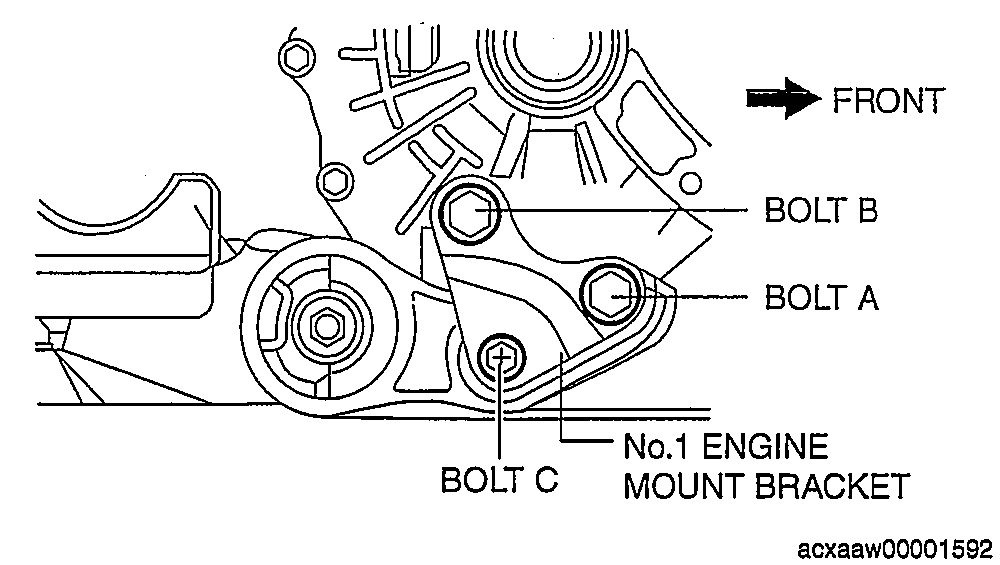

Fig 1: Identifying No. 1 Engine Mount Bracket & Bolts

Courtesy of MAZDA MOTORS CORP.

Install the NO. 1 engine mount rubber on the bracket and temporarily tighten bolt C.
Tighten the No. 1 engine mount bracket bolt A and B in order of A→B.
Tightening torque

Bolt A, B: 93.1-116.6 N.m

{9.50-11.88 kgf.m, 68.7-85.9 ft.lbf}
Fully tighten the bolt C.
Tightening Torque

Bolt C: 86.1-95.1 N.m

{8.8-9.6 kgf.m, 63.5-70.1 ft.lbf}

NOTE: Bolt C can be tightened on the nut side. When tightening on the nut side, tighten it according to the following tightening torque.

Nut C tightening torque

For bolt D (M12): 86.1-95.1 N.m (8.8-9.6 kgf-m, 63.5-70.1 ft.lbf

For bolt D (M14): 59.3-72.5 N.m (6.0-7.3 kgf-m, 43.7-53.4 ft.lbf

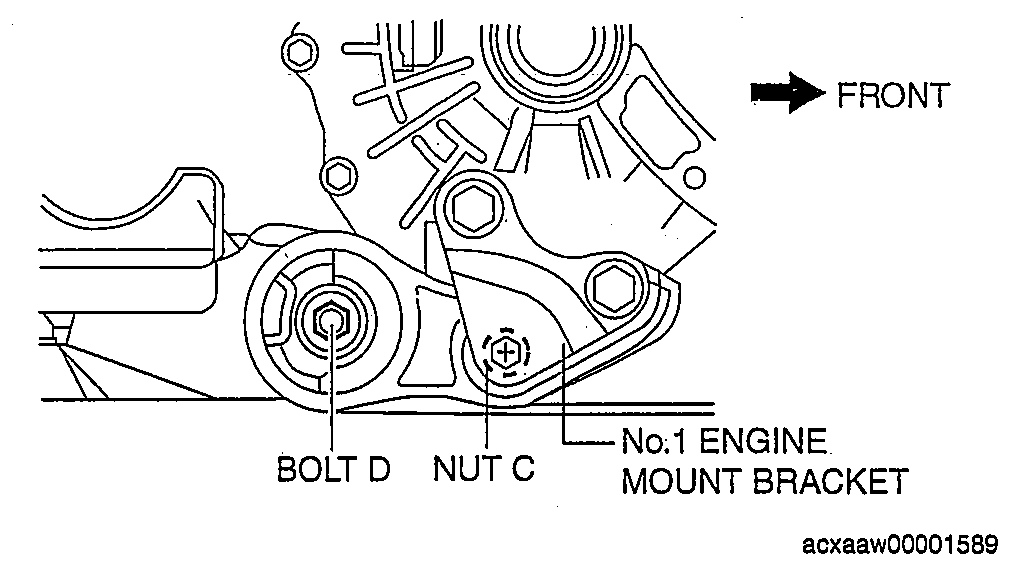

Fig 2: Locating Nut C

Courtesy of MAZDA MOTORS CORP.
