Auto-Dimming Mirror Inspection
- Measure the voltage at each terminal (other than terminal F).
- If the voltage is not as specified in Terminal Voltage Table (Reference), inspect the parts under "Inspection items(s)" and related wiring harnesses.
- Disconnect the negative battery cable.

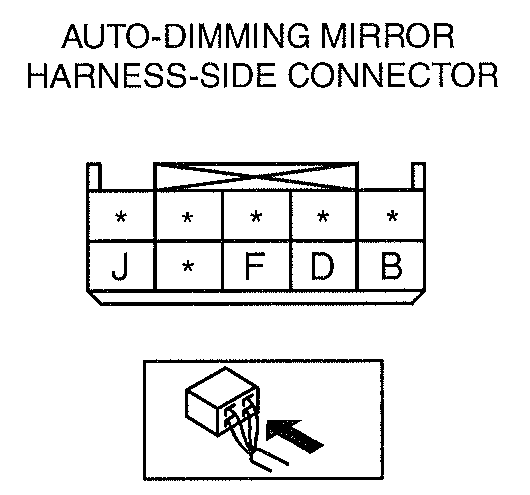

- Inspect the auto-dimming mirror connector for continuity at terminal F.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the auto-dimming mirror.
TERMINAL VOLTAGE TABLE (REFERENCE)
| Terminal | Signal Name | Connected to | Measured condition | Voltage (V)/Continuity | Inspection item(s) |
|---|---|---|---|---|---|
| B | Power Supply | A/C 15 A fuse | Ignition switch at ON | B+ |
|
| D | R range signal | TR switch | R range | B+ |
|
| Other than R range | 1.0 or less | ||||
| F | GND | Body ground | Under any condition: Inspect for continuity to ground. | Continuity detected |
|
| J | Power supply | ROOM 15 A fuse | Under any condition | B+ |
|
