Auto-Dimming Mirror

  1. Install the rearview mirror.

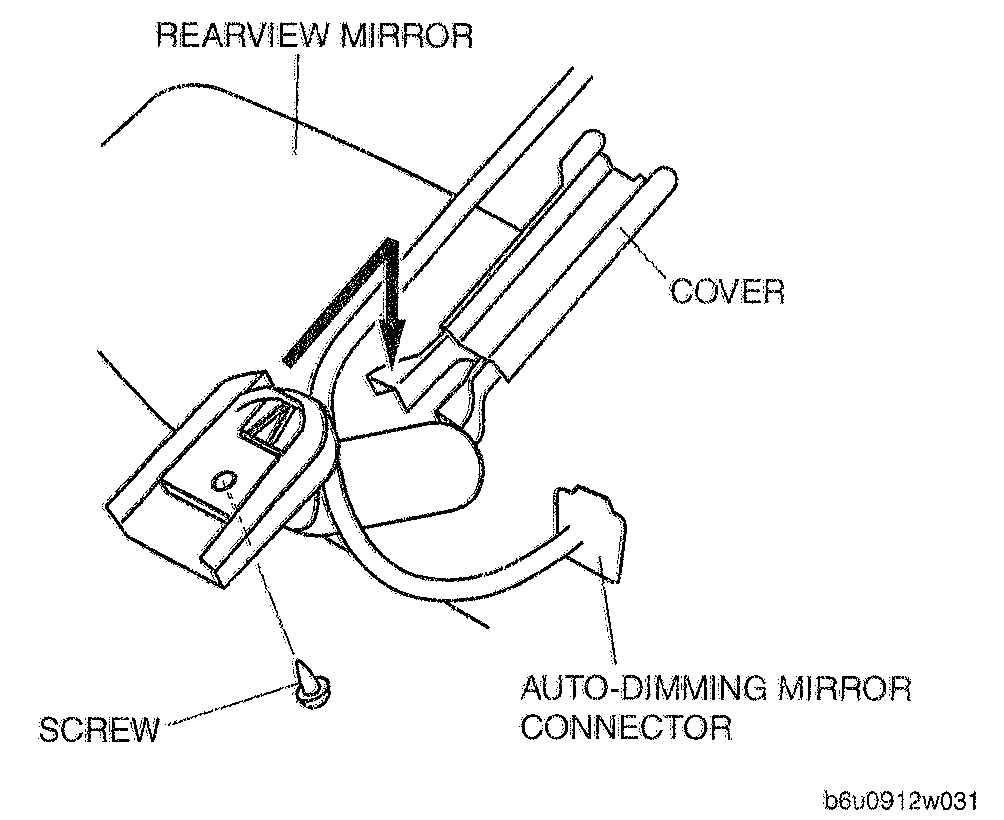

    2. Fig 1: Identifying Auto-Dimming Mirror Components
    G00487277Courtesy of MAZDA MOTORS CORP.
  2. Install the screw.
  3. Connect the auto-dimming mirror connector.
  4. Install the cover.
