Steering Gear - 2WD: Notes

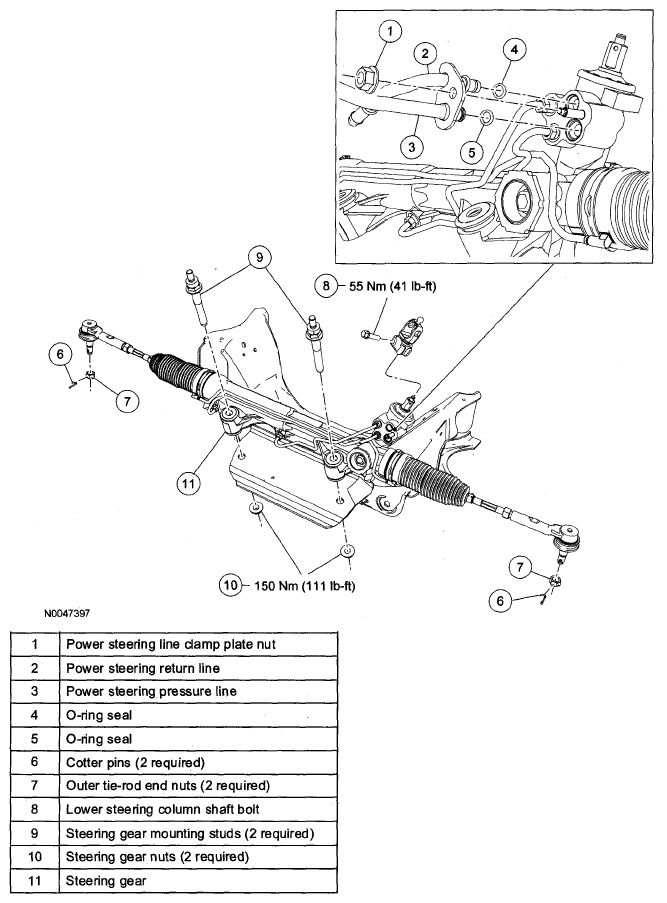

Fig 1: Steering Gear Replacement Components With Torque Specifications - 2WD

G04930692

Courtesy of MAZDA MOTORS CORP.
