Power Steering Fluid Cooler: Notes

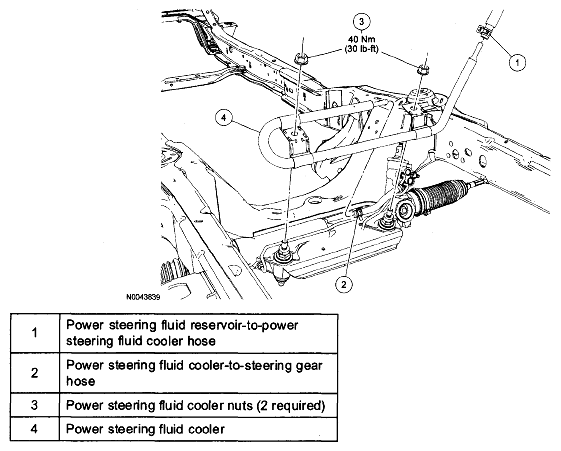

Fig 1: Power Steering Fluid Cooler Replacement Components With Torque Specifications

G04930676

Courtesy of MAZDA MOTORS CORP.
