Inner Tie Rod: Notes

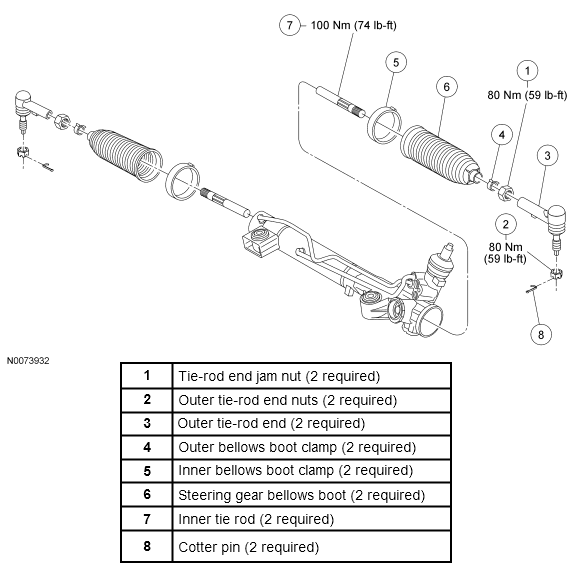

Fig 1: Inner Tie Rod Replacement Components With Torque Specifications

GF0047389

Courtesy of MAZDA MOTOR CORP.
