Generator Pulley Removal / Installation

1. Remove the generator. See GENERATOR REMOVAL / INSTALLATION - 2.3L , or GENERATOR REMOVAL/INSTALLATION - 4.0L ,
2. Remove the nut (1) and generator pulley (2).
3. To install, reverse the removal procedure.

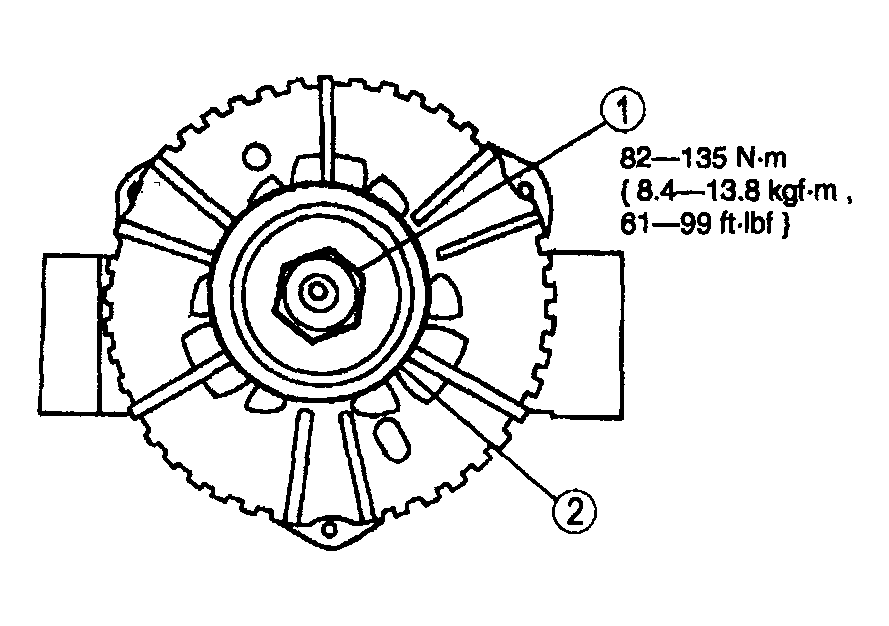

Fig 1: Generator Pulley Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
