Anti-Lock Brake System Module Connector End View (C135)
Anti-Lock Brake System Module Connector End View (C135)

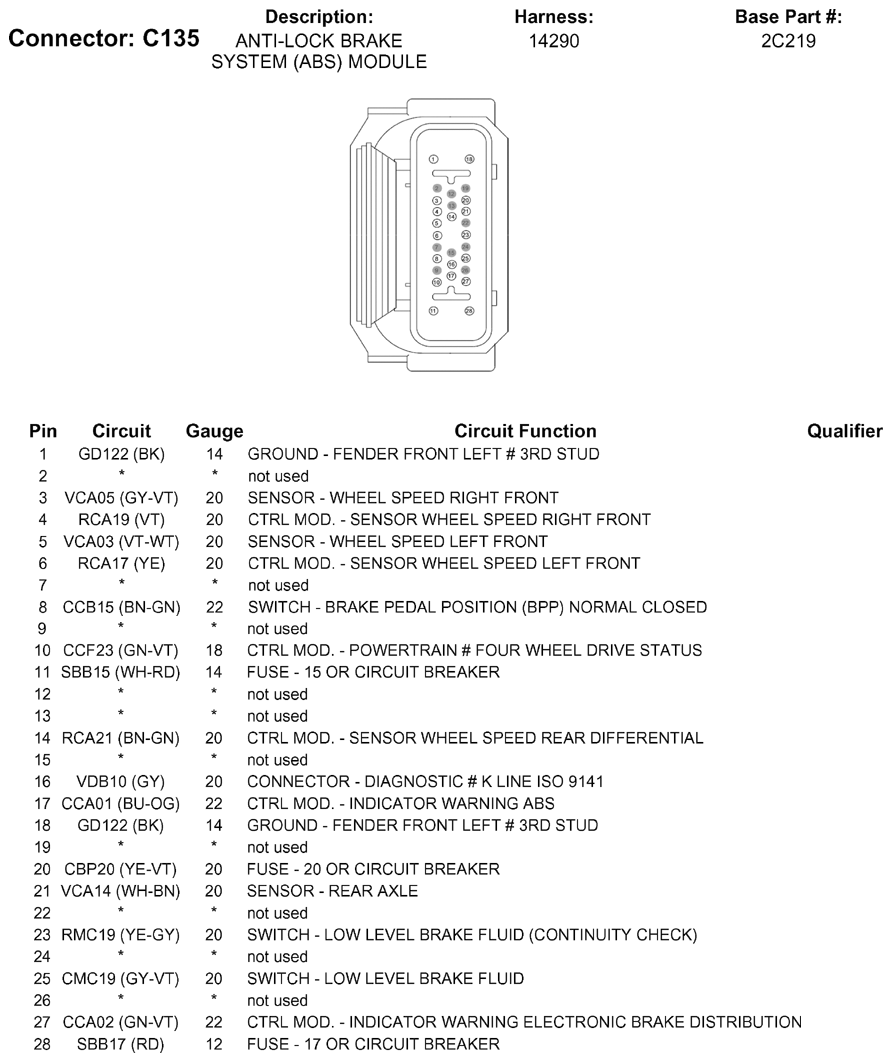

Fig 1: Anti-Lock Brake System Module Connector End View (C135)
