Home >> Mazda >> 2009 >> B4000 Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Occupant Classification System Module Connector End View (C3159)

Occupant Classification System Module Connector End View (C3159)

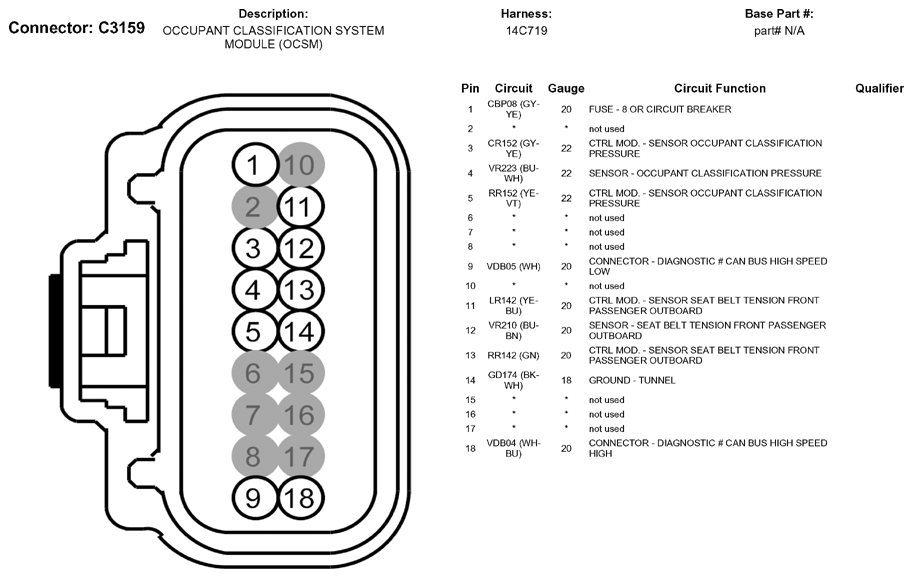

Fig 1: Occupant Classification System Module Connector End View (C3159)

G05788599
