Battery cable

Before disconnecting connectors or removing electrical parts, disconnect the negative battery cable. See Battery Disconnect , .

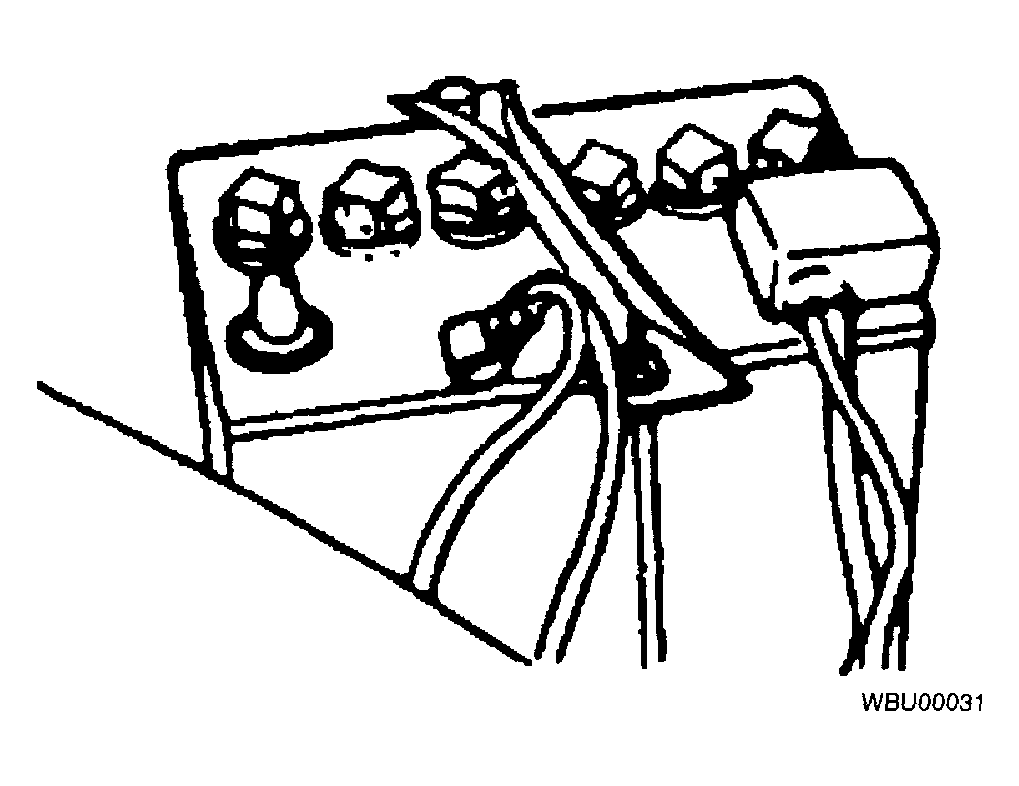

Fig 1: Identifying Battery Cables
G04306871Courtesy of MAZDA MOTORS CORP.
