Connector End Views - Automatic Transmission

Fig 1: Connector End Views - 0140-05 Digital Transmission Range (DTR) Sensor (ECS)
G04929073

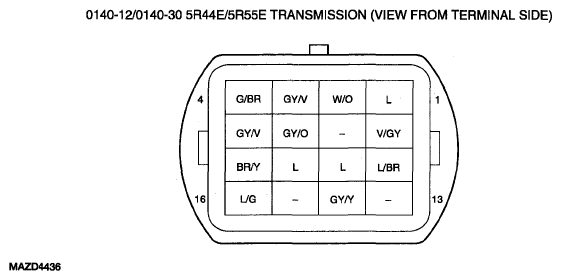

Fig 2: Connector End Views - 0140-12/0140-30 5R44E/5R55E Transmission (View From Terminal Side)
G04930340

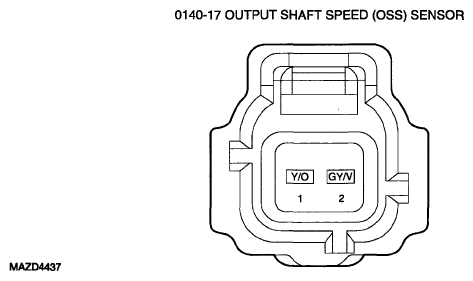

Fig 3: Connector End Views - 0140-17 Output Shaft Speed (OSS) Sensor
G04930341
