Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

  1. Remove the front shock absorber and coil spring. See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of removal.
  4. Inspect the wheel alignment and adjust it if necessary. See FRONT WHEEL ALIGNMENT .

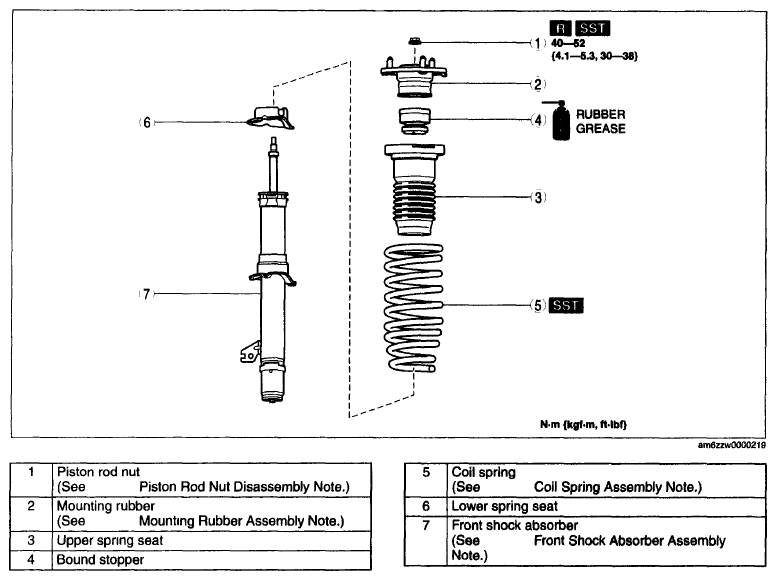

    Fig 1: Front Shock Absorber And Coil Spring Disassembly/Reassembly Order With Torque Specifications
    G06199911Courtesy of MAZDA MOTORS CORP.
