Mounting Rubber Assembly Note

  1. Install the mounting rubber stud bolt with its bolt head aligned with the dent of the upper spring seat.
    Fig 1: Installing Mounting Rubber Stud Bolt With Its Bolt Head Aligned With Dent Of Upper Spring Seat
    G06199916Courtesy of MAZDA MOTORS CORP.
  2. Install the mounting rubber as shown in the figure.

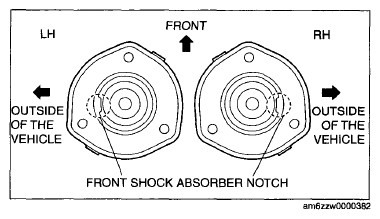

    Fig 2: Identifying Mounting Rubber
    G06199917Courtesy of MAZDA MOTORS CORP.
