Steering Location Index

L5

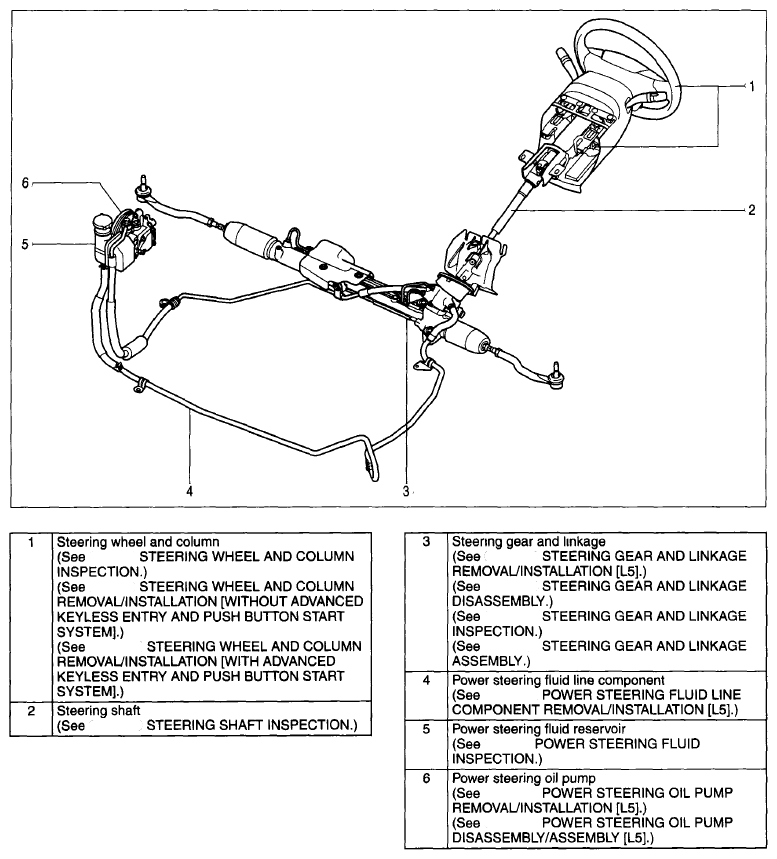

Fig 1: Identifying Steering Components - L5

G06200193

Courtesy of MAZDA MOTORS CORP.

MZI-3.7

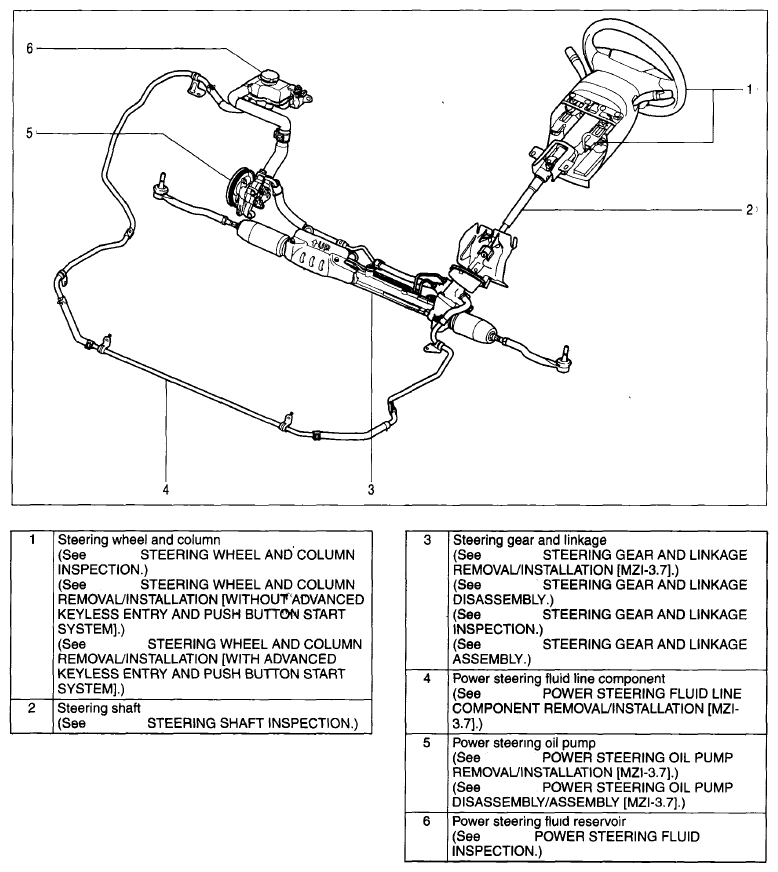

Fig 2: Identifying Steering Components - MZI-3.7

G06200194

Courtesy of MAZDA MOTORS CORP.
