Mounting Rubber Disassembly Note

Remove the mounting rubber from the gear housing using the SSTs and a press.
Substitution SST
- 49 B032 317
  Outer diameter: 20.0-24.5 mm {0.79-0.96 in}

  Height: 40 mm {1.6 in} or more
- 49 V001 525
  Inner diameter: 34 mm {1.3 in} or more

  Outer diameter: 36-39 mm {1.42-1.53 in}

  Plate thickness: 1 mm {0.04 in} or more

  Height: 40 mm {1.6 in} or more

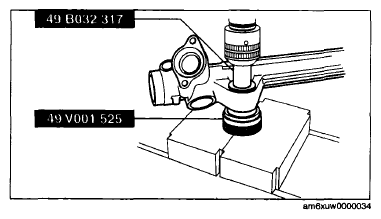

  Fig 1: Illustrating Removal Of Mounting Rubber From Gear Housing
  Courtesy of MAZDA MOTORS CORP.
