Rotor Assembly Note

  1. Install to the front pump body so that dimple as shown in the figure is on the front pump body side.

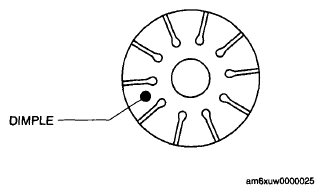

    Fig 1: Identifying Dimple On Rotor
    G06200309Courtesy of MAZDA MOTORS CORP.
