Solar Radiation Sensor Connector End View

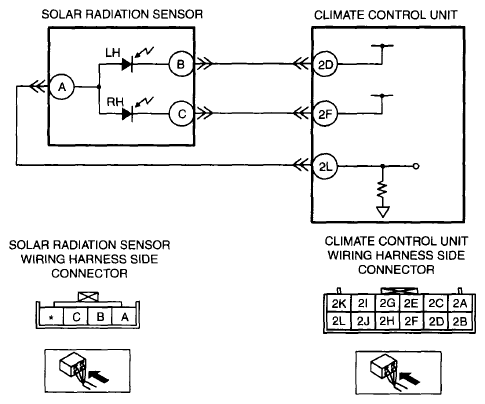

Fig 1: Solar Radiation Sensor Connector End View

G06206037

Courtesy of MAZDA MOTORS CORP.
