Front Abs Wheel-Speed Sensor Inspection
>>
Clearance Inspection
>>
Clearance
Clearance Inspection: Clearance
0.6-1.5 mm {0.03-0.05 in}

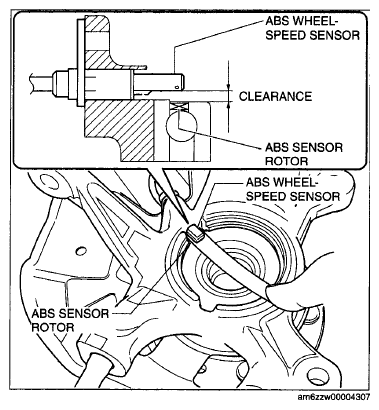

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge
Courtesy of MAZDA MOTORS CORP.
