Rear Window Glass Removal

Fig 1: Identifying Fasteners

Courtesy of MAZDA MOTORS CORP.

Set the headliner out of the way.
Disconnect the filament connector.

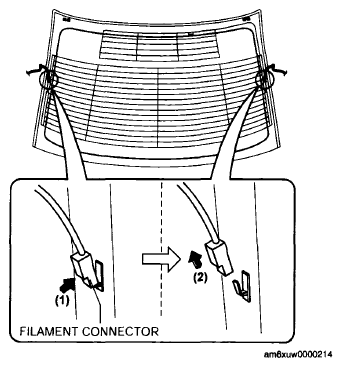

Fig 2: Disconnecting Filament Connector
Courtesy of MAZDA MOTORS CORP.
Apply protective tape along the edge of the body.
NOTE:
- Overlap and adhere the protective tape to the corners to prevent damage.

  Fig 3: Identifying Protective Tape Application Areas
  Courtesy of MAZDA MOTORS CORP.
Avoiding the pin on the inside of the vehicle, insert piano wire which has been cut to sufficient length.

Fig 4: Identifying Sealant & Piano Wire Position
Courtesy of MAZDA MOTORS CORP.
WARNING:
- Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.
NOTE:
- Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.
Wind each end of piano wire around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.
Secure one end of piano wire, and while pulling the other end, cut the sealant around the rear window glass.

Fig 5: Cutting Sealant Of Rear Window Glass
Courtesy of MAZDA MOTORS CORP.
Pinch the pin from the inside of the vehicle and detach it.

Fig 6: Identifying Pins

Courtesy of MAZDA MOTORS CORP.
