Power Outer Mirror Switch Inspection

Switch the ignition to on
Verify that the power outer mirror switch can be operated for approx. 43 s after the ignition is switched off.
- If the power outer mirror cannot be operated for approx. 43 s after the ignition is switched off, or if the power outer mirror can still be operated after approx. 43 s , replace the power outer mirror switch.
Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.
- If not as indicated in the table, replace the power outer mirror switch.

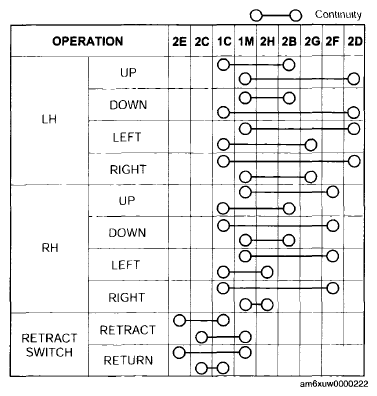

  Fig 1: Power Outer Mirror Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

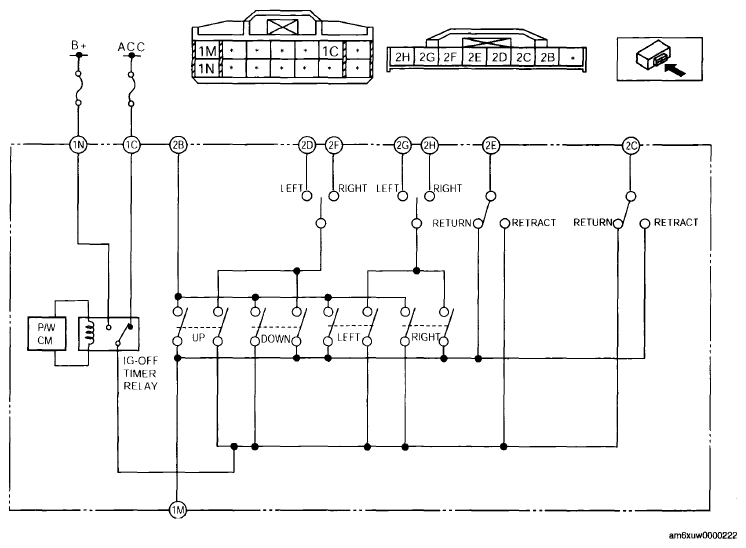

  Fig 2: Identifying Power Outer Mirror Switch Terminals With Circuit
  Courtesy of MAZDA MOTORS CORP.
