Door Locks
>>
Symptom Troubleshooting [Keyless Entry System)
>>
Keyless Entry System Wiring Diagram [Keyless Entry System]
Keyless Entry System Wiring Diagram [Keyless Entry System]

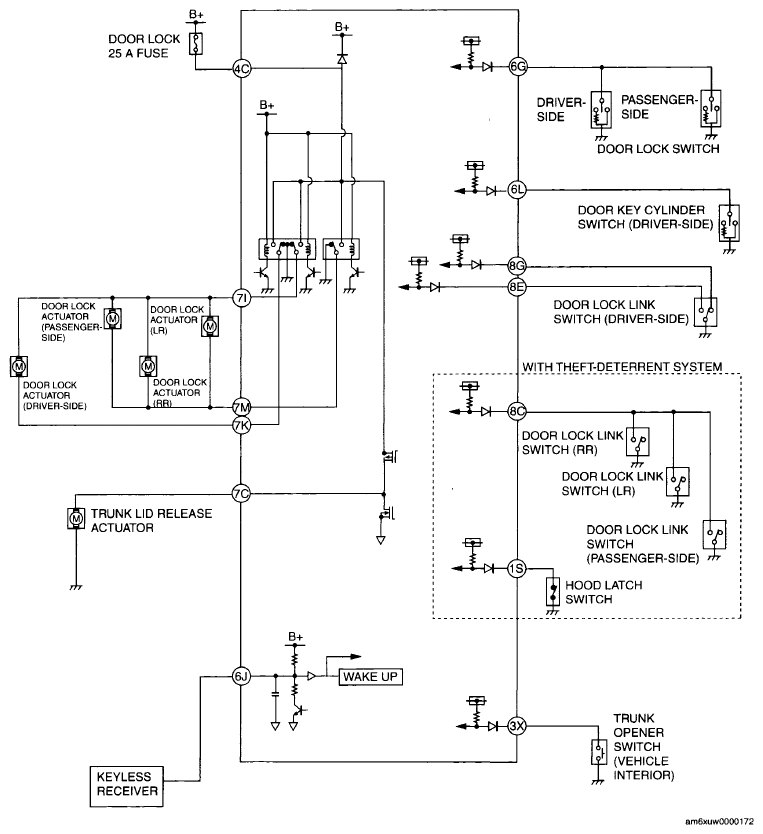

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
