Audio Control Switch Removal/Installation

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable wait for 1 min more.
  3. Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .
  4. Remove the steering wheel. See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] . See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
  5. Remove in the order indicated in the table.

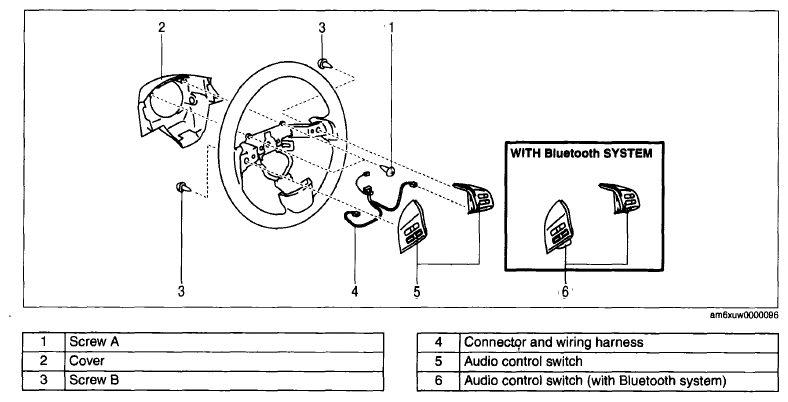

    Fig 1: Identifying Audio Control Switch Component Location
    G06201185Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
