Seat Weight Sensor Control Module Connector End View

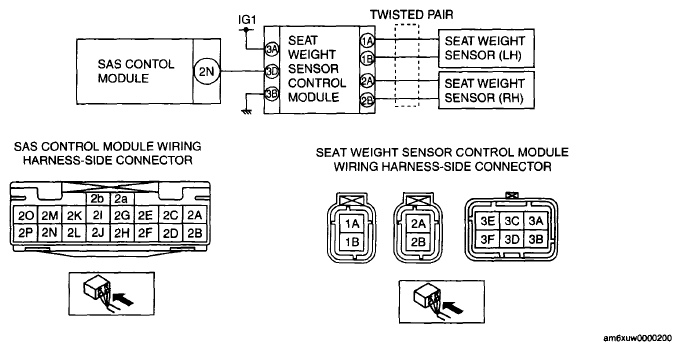

Fig 1: Seat Weight Sensor Control Module Connector End View

G06200407

Courtesy of MAZDA MOTORS CORP.
