BSM Control Module (LH) Connector End View

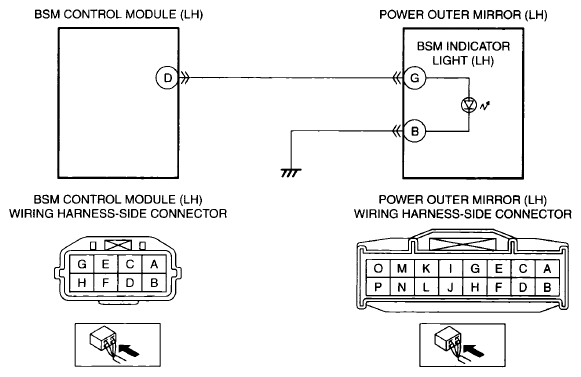

Fig 1: BSM Control Module (LH) Connector End View

G06206165

Courtesy of MAZDA MOTORS CORP.
