Relay Block Inspection [With Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable.
  2. Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
  3. Remove the knee bolster. See KNEE BOLSTER REMOVAL/INSTALLATION .
  4. Remove the relay block. See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .
  5. Verify that the continuity is as indicated in the table.

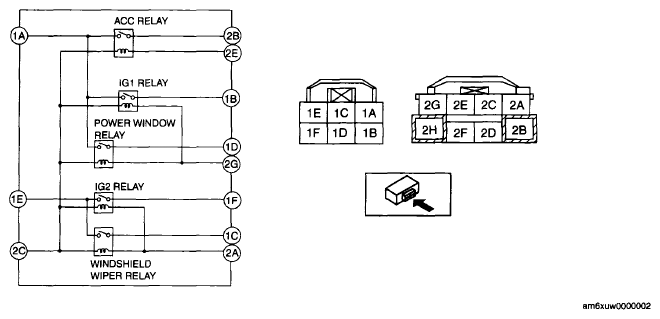

    Fig 1: Relay Block Circuit Diagram
    G06205735Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the relay block.

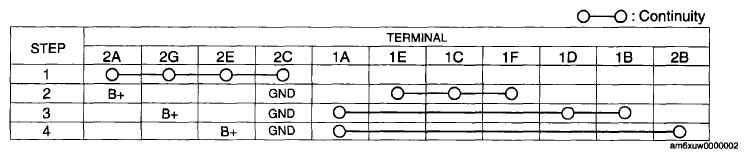

    Fig 2: Relay Block Continuity Chart
    G06205736Courtesy of MAZDA MOTORS CORP.
