Fuel Injector Removal/Installation [L5]: Notes

1. Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION [L5]. )
2. Disconnect the negative battery cable.
3. Remove the plug hole plate.
4. Disconnect the fuel injector connector.
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION [L5]. )

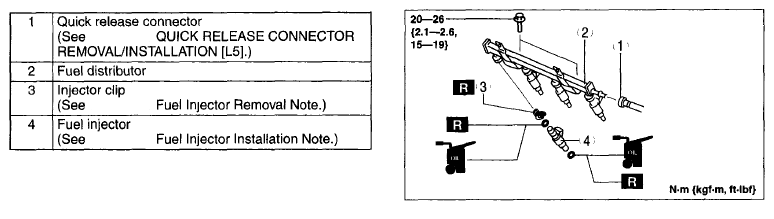

Fig 1: Identifying Fuel Distributor And Quick Release Connector

Courtesy of MAZDA MOTORS CORP.
