On-Board Diagnostic (Engine Control System L5) (1 Of 5)
>>
Monitoring System And Control System Device Relationship Chart [L5]
Monitoring System And Control System Device Relationship Chart [L5]

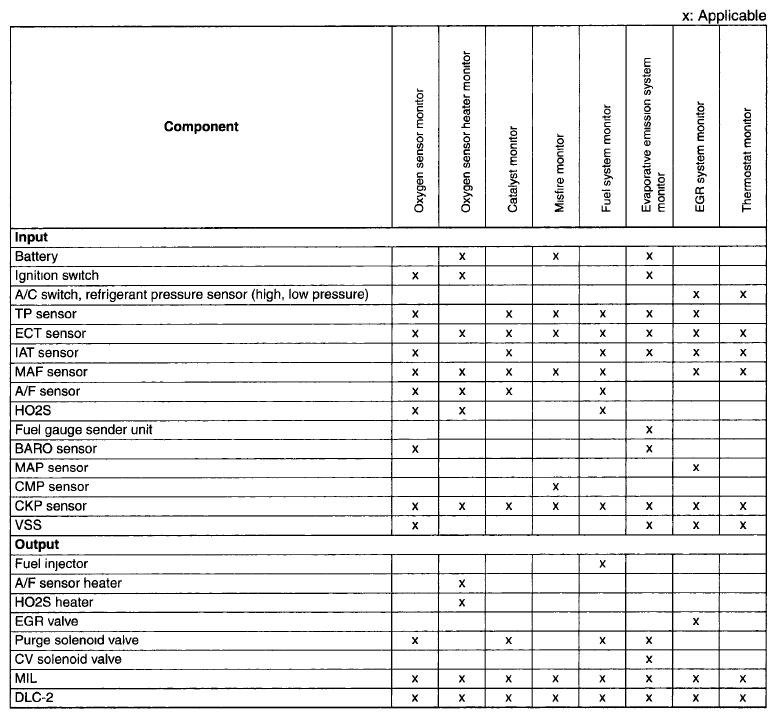

Fig 1: Monitoring System & Control System Device Relationship Chart [L5]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
