Using M-MDS

  1. Connect the M-MDS to the DLC-2
  2. Using the simulation function "FP", start the fuel pump. See ON-BOARD DIAGNOSTIC TEST [L5] .

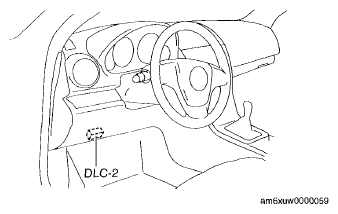

Fig 1: Identifying DLC-2
G06204983Courtesy of MAZDA MOTORS CORP.


  1. Using the simulation function "FP", stop the fuel pump. See ON-BOARD DIAGNOSTIC TEST [L5] .
  2. Disconnect the negative battery cable
