Using M-MDS

  1. Connect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [L5] .
  2. Connect the M-MDS to the DLC-2.
  3. Using the simulation function "FP", start the fuel pump. See ON-BOARD DIAGNOSTIC TEST [L5] .

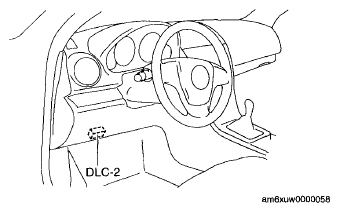

Fig 1: Identifying DLC-2
G06204979Courtesy of MAZDA MOTORS CORP.
