Mounting Rubber Disassembly Note

  1. Press the mounting rubber out from the gear housing using the SSTs  and a press.

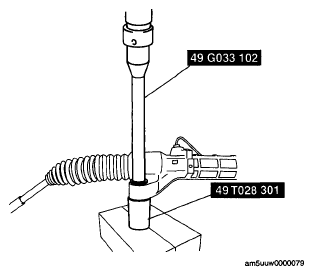

    Fig 1: Identifying SST For Mounting Rubber
    G05543278Courtesy of MAZDA MOTORS CORP.
