Locknut (on Adjusting Cover) Assembly Note

CAUTION:

Fix the adjusting cover and tighten the locknut.

Fig 1: Identifying SST For Locknut
Courtesy of MAZDA MOTORS CORP.
Measure the rotation torque of the pinion shaft using a crescent wrench and pull scale.
1. Install the crescent wrench to the steering gear.

  Fig 2: Measuring Rotation Torque Of Pinion Shaft
  Courtesy of MAZDA MOTORS CORP.
2. Measure the length from the pinion shaft center to the crescent wrench end (application point of pull scale) as shown in the figure. This is dimension A.
3. The rotation torque of the pinion shaft can be calculated using the following formula: Measured value using pull scale (N {kgf, lbf}) = rotation torque of the pinion shaft (N.m {kgf.cm, in.lbf})/length A (m {cm, in})

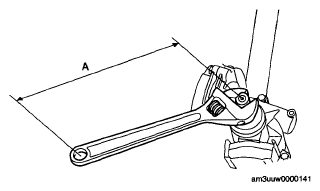

  Fig 3: Measuring Length From Pinion Shaft Center To Crescent Wrench End
  Courtesy of MAZDA MOTORS CORP.

  Pinion shaft rotation torque (center of rack ± 90°)

  0.88-1.48 N.m {8.98-15.0 kgf.cm, 7.79-13.0 in.lbf}

  [Pull scale reading: 0.88-1.48 N.m {8.98-15.0 kgf.cm, 7.79-13.0 in.lbf}/A (m {cm, in})]
If not as specified, remove the locknut and adjust the adjust cover.
