Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

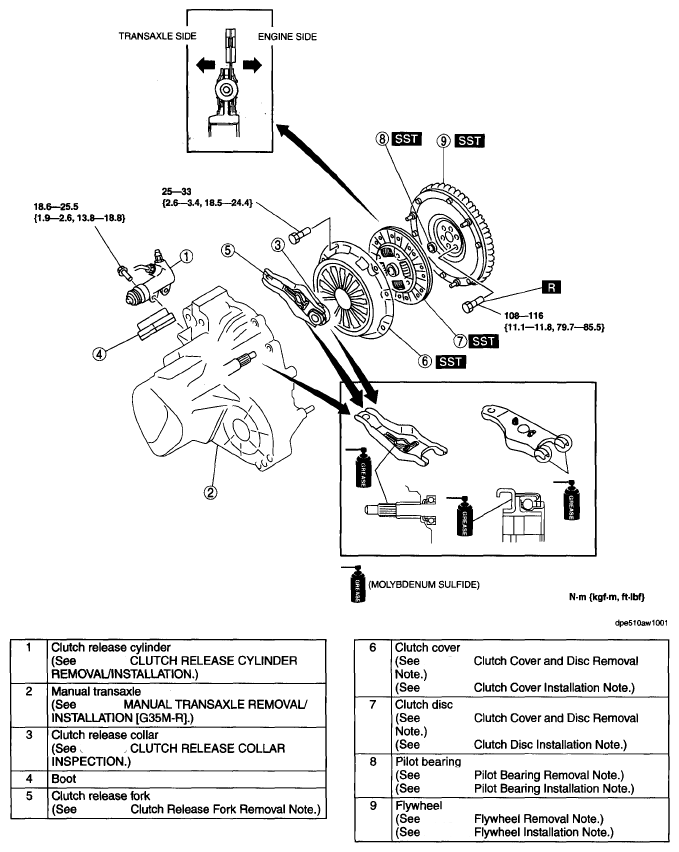

    Fig 1: View Of Clutch Unit Components With Torque Specifications
    G05545057Courtesy of MAZDA MOTORS CORP.
