Manual Transaxle Shift Mechanism Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Battery duct, battery, battery box, battery tray and PCM component (See BATTERY REMOVAL/INSTALLATION [L3] .)
    2. Heat insulator (Front)
    3. Shift lever knob
    4. Boot panel (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    6. Rear blower unit (vehicle with rear blower unit) (See REAR BLOWER UNIT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. After installation, verify that the shift lever can be shifted smoothly into each position.

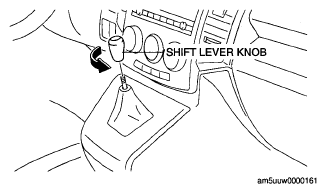

    Fig 1: Identifying Shift Lever Knob
    G05545096Courtesy of MAZDA MOTORS CORP.

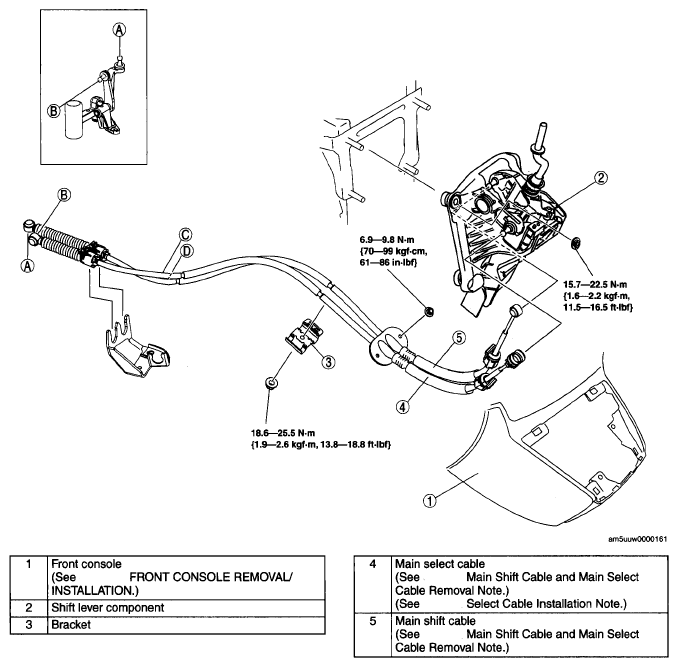

    Fig 2: Manual Transaxle Shift Mechanism Components With Torque Specifications
    G05545097Courtesy of MAZDA MOTORS CORP.
