Sliding Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • If the sliding door removal/installation is performed by one person, the sliding door could fall down and serious injury may occur. Always perform the procedure with at least another person to prevent the sliding door from falling down.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Remove the rear combination light, (vehicles without PSD) (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the figure.
  6. Install in the reverse order of removal.
  7. Adjust the sliding door. (See SLIDING DOOR ADJUSTMENT .)

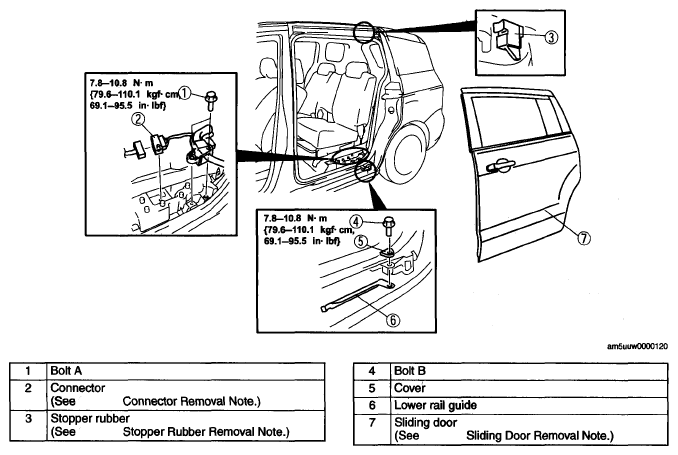

    Fig 1: Sliding Door, Connector, Cover, Bolts With Torque Specifications
    G05545628Courtesy of MAZDA MOTORS CORP.
