Liftgate Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When removing the stay damper, serious injury may occur if the stay damper is removed without supporting the liftgate. Always perform the procedure with at least another person.

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
Disconnect the negative battery cable.
Remove the rear header trim. (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
Disconnect the rear washer hose.
Disconnect the liftgate wiring harness connector.
Remove in the order indicated in the figure.

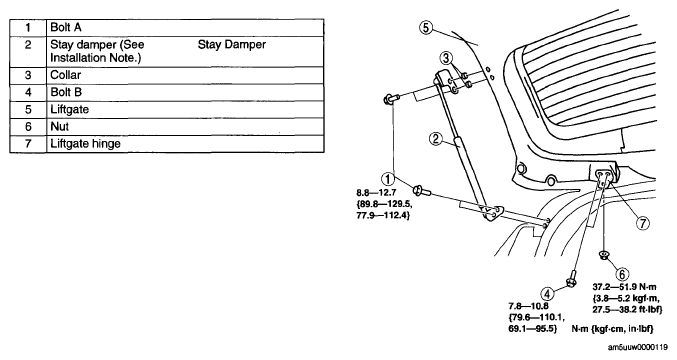

Fig 1: Stay Damper, Collar, Liftgate, Bolt, Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
