Front Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. To remove the checker, remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  4. To remove the front door hinges, remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front side turn lights (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION .)
    4. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    5. Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    6. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    7. Side step molding (vehicles with side step molding) (See SIDE STEP MOLDING REMOVAL/INSTALLATION .)
    8. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the figure.
  6. Install in the reverse order of removal.
  7. Adjust the front door. (See FRONT DOOR ADJUSTMENT .)

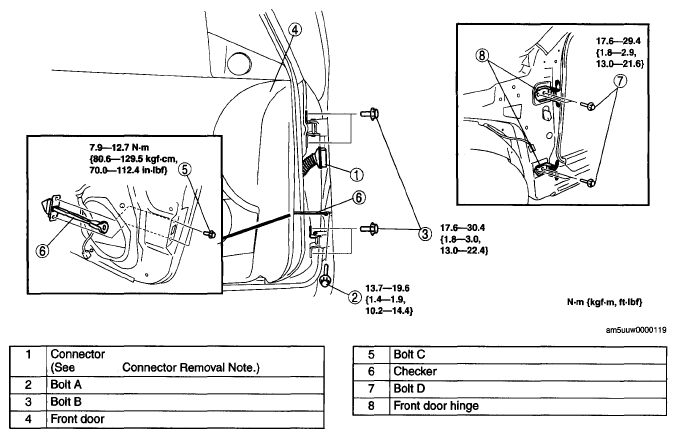

    Fig 1: Front Door Bolt With Torque Specification
    G05545625Courtesy of MAZDA MOTORS CORP.
