Center Guide Rail Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • If the sliding door removal is performed by one person, the sliding door could fall down and serious injury may occur. Always perform the procedure with at least another person to prevent the sliding door from falling down.
  1. Remove the following parts:
    1. Rear package tray lid (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION .)
    2. Third-row seat (7-passenger model) (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (7-passenger model) (See THIRD-ROW SEAT DISASSEMBLY/ASSEMBLY .)
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
    7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    8. Rear combination lights (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    9. Center guide rail cover (See CENTER GUIDE RAIL REMOVAL/INSTALLATION .)
  2. Disconnect the center roller from the sliding door. (See SLIDING DOOR REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

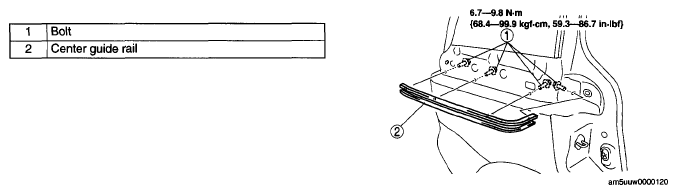

    Fig 1: Center Guide Rail, Bolt With Torque Specifications
    G05545636Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
