Front Wheel Hub Bolt Replacement

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake calliper component and disc plate.
  2. Remove the wheel hub bolt using the SST  as shown in the figure.
    NOTE:
    • When removing the wheel hub bolts, perform the work between range A shown in the figure to assure a space for the bolt removal.
  3. Place a new wheel hub bolt in the wheel hub.

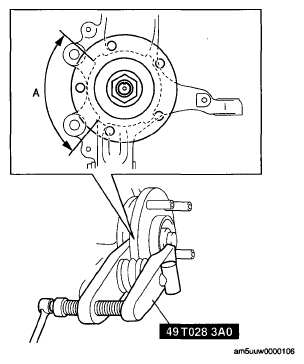

    Fig 1: Removing Wheel Hub Bolt
    G05544872Courtesy of MAZDA MOTORS CORP.
  4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

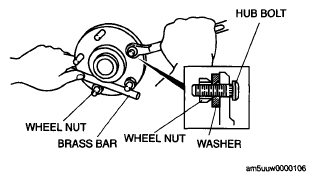

    Fig 2: Tightening Wheel Hub Nut
    G05544873Courtesy of MAZDA MOTORS CORP.
