Sliding Door

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the door lock-link switch terminals.
- If not as specified, replace the sliding door lock actuator. (See SLIDING DOOR LOCK ACTUATOR REMOVAL/INSTALLATION .)

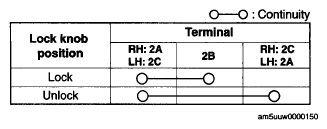

  Fig 1: Door Lock-Link Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Door Lock-Link Switch - Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
