GPS Antenna Removal/Installation
WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the following parts:
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
- Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
- Car-navigation unit (See CAR-NAVIGATION UNIT REMOVAL/INSTALLATION .)
- Dashboard center panel (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)

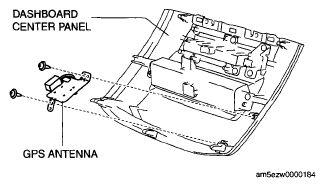

- Remove in the GPS antenna.
- Install in the reverse order of removal.
