Auxiliary Jack Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the auxiliary jack connector.
  5. Squeeze the tabs of auxiliary jack and pull it outward to remove it.
  6. Install in the reverse order of removal.

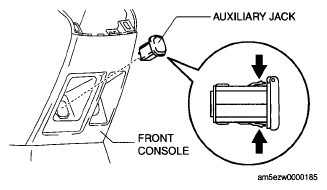

    Fig 1: Removing Auxiliary Jack
    G05543594Courtesy of MAZDA MOTORS CORP.
